Geetting COM Under 1/2" ???

Post by Topspin.D » Sat Mar 23, 2013 11:58 pm

Does anyone have a design they would be willing to share where the car has a COM at or under 1/2"?

Photos or descriptions of weighting set up are appreciated.

We would like to try a really aggressive car at the district open race.

I should note we'd like to do this with standard wheel base and 4 wheels on the car. Long nose is ok.



User avatar
Stan Pope
Pine Head Legend
Pine Head Legend
Posts: 6888
Joined: Sat Jul 05, 2003 7:01 pm
Location: Morton, Illinois
Contact:

Re: Geetting COM Under 1/2" ???

Post by Stan Pope » Sun Mar 24, 2013 12:31 am

Body 1/4" thick. 2 oz 1/4" tungsten cubes 1/8" - 5/8" behind rear axle center. 2 oz 1/4" tungssten cubes 1/8"-5/8" ahead of rear axle center (rear axles in a section of wood 1/4"X1/4"). Thin/remove wood from body until weight with tungsten, body, glue for tungsten, axles, wheels approx 4.8 oz. (CM loc at this point is about 3/8" for your wheelbase. Add 0.2 oz flat trim weight to body to adjust CM location for best time. (The smaller CM location, the greater must be the toe-in on DFW, so there is a trade-off related to track length. Longer track wants smaller toe-in for best time.)


Stan
"If it's not for the boys, it's for the birds!"

Topspin.D
Master Pine Head
Master Pine Head
Posts: 183
Joined: Wed Jun 13, 2012 12:10 am
Location: Kirkland, Washington

Re: Geetting COM Under 1/2" ???

Post by Topspin.D » Tue Jan 27, 2015 12:18 am

Thank you Stan!



ngyoung
Master Pine Head
Master Pine Head
Posts: 234
Joined: Thu Apr 03, 2014 6:36 pm
Location: Eyota, Minnesota

Re: Geetting COM Under 1/2" ???

Post by ngyoung » Tue Jan 27, 2015 7:49 am

I do it all the time. Usually i end up sliding my weights forward to get over .5"

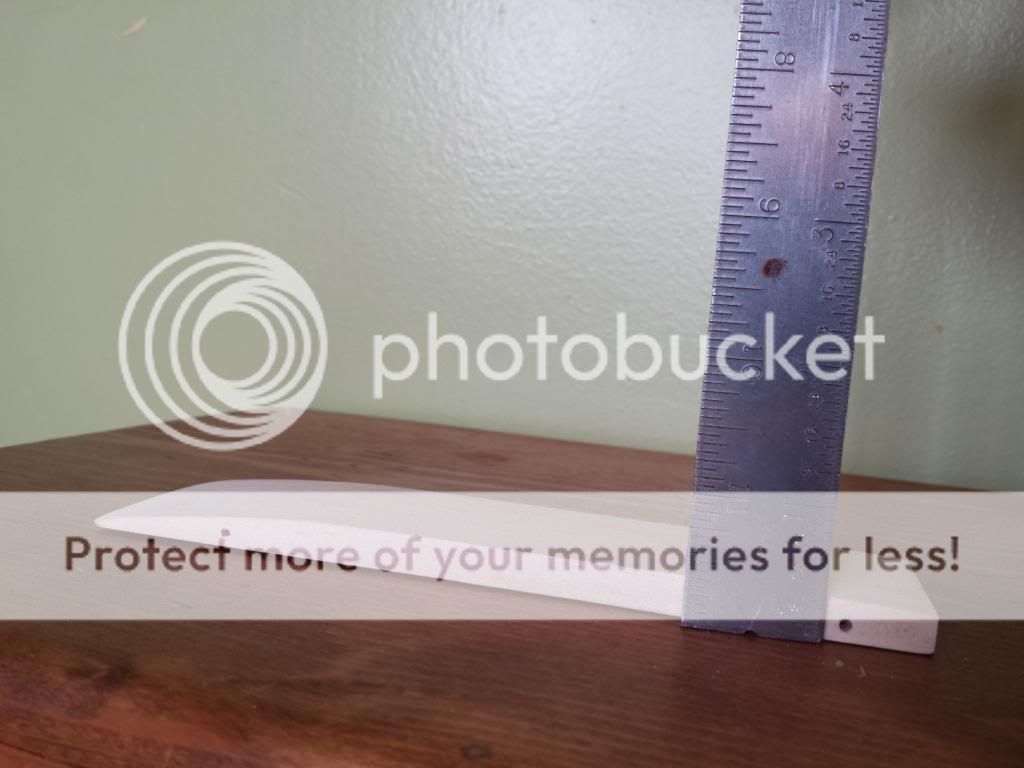

I havent been very stable though going that aggressive. This build ended up around there. Cut a ladder body filled voids with Greatstuff. Cut the block to 5/8" then sandeddown till i saw daylight through the wood over the weight pocket the sloped the nose at the front axle hole.
